Rail Fixation Features and Benefits

  • Minimially invasive surgical solution for fracture fixation and lengthening

  • Precise, controlled compression and distraction

  • Various fixator sizes and configurations to address clinical situations

  • Patented multi-axial pin clamps design for micro rails offer a 15º pin placement margin. A printed scale on the side gives the direction traveled by the moving clamp from the extreme position.

  • Variable pin placement to simplify procedures including Jones Fractures, Lapidus, Lisfranc, Brachymetatarsia, and other osteotomies or trauma cases

  • Micro and Mini Rails accept 2.0mm, 2.5mm, and 3.0mm pins

  • Mono Rails accept 4.0mm, 5.0mm, 6.0mm standard half pins

  • Unique monorail clamp enable pin stacking

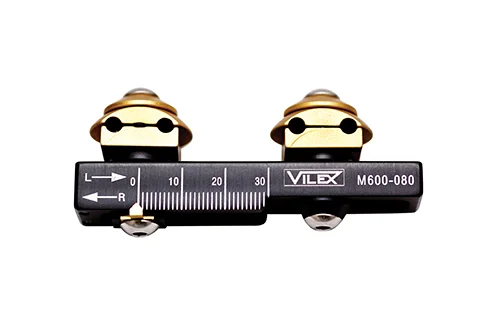

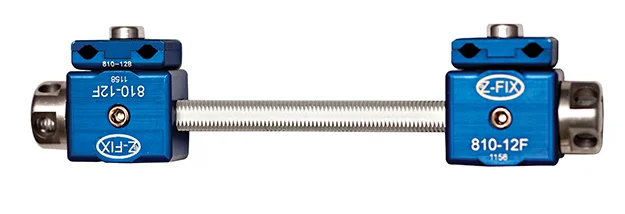

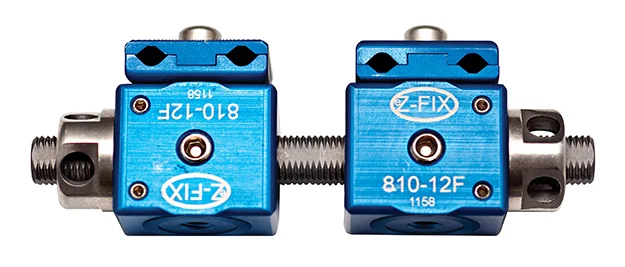

Micro Rails

Articulating or Fixed Clamps

  • Provides anatomic fit and stable locking
  • Provides rigid fixation
  • Reduced fixator weight

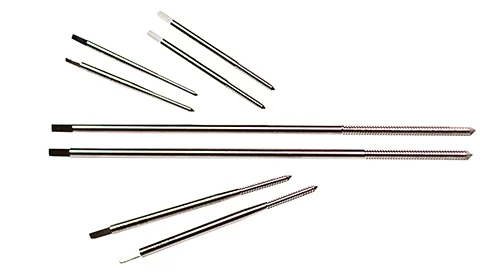

  • 2.0, 2.5 and 3.0mm half pins up to 70mm in length.

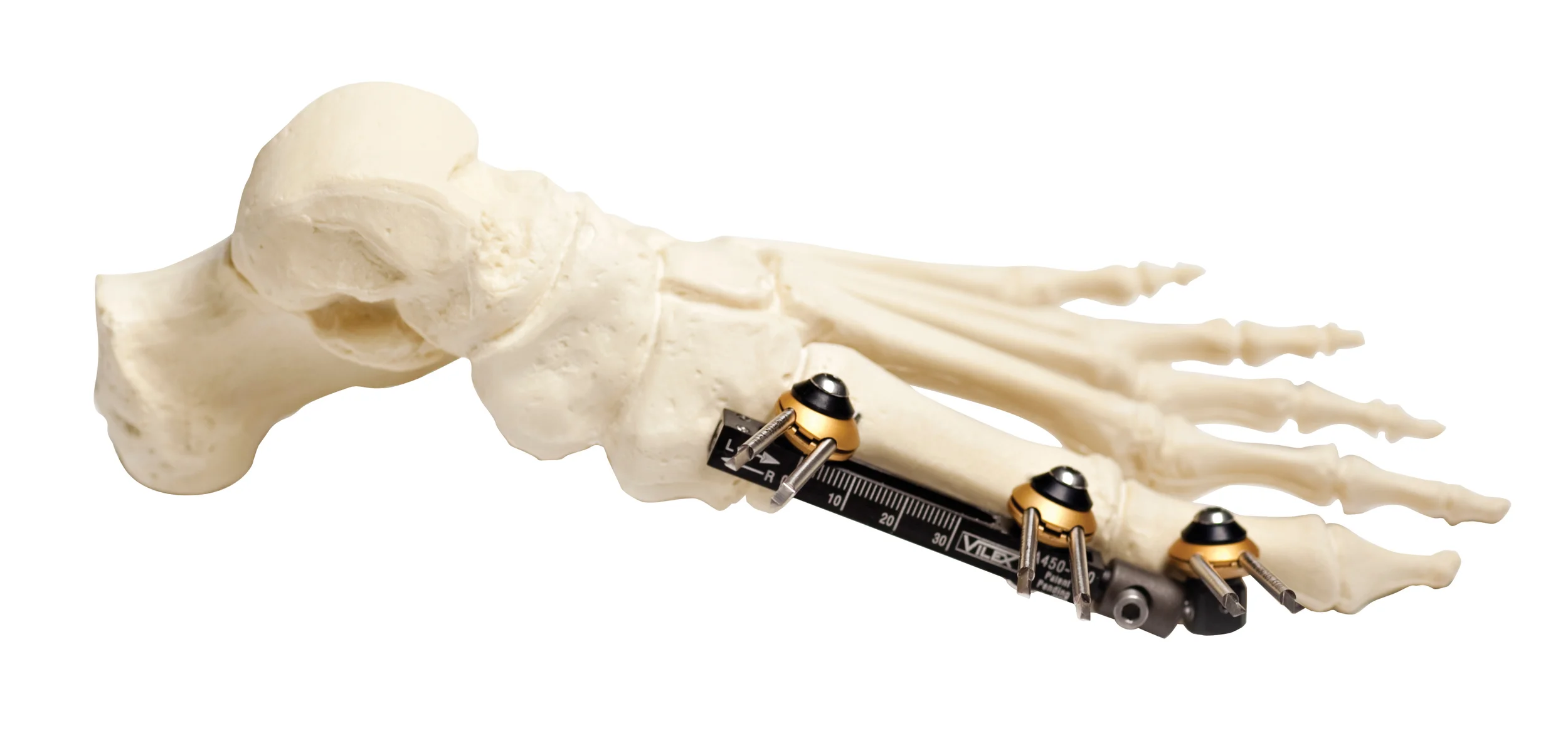

    Possible indications: Lesser Metatarsal Lengthening and Fusion, Lisfranc Fusion, and Stabilization.

Metatarsal Lengthening Surgical Animation

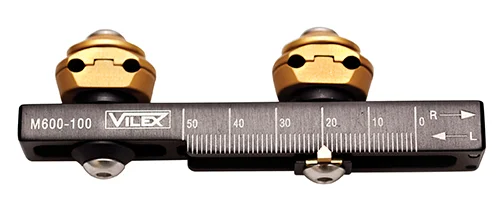

Mini Rails

  • Accepts larger size half pins

  • Features stationary

  • M645 styles with gold pin clamps accept half pins up to 4mm in diameter and 175mm in length

  • Fixed (black) and articulating (gold) pin clamps

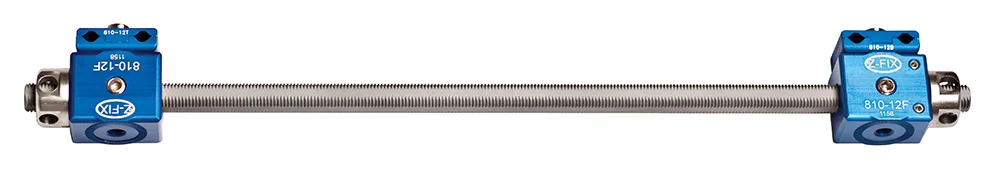

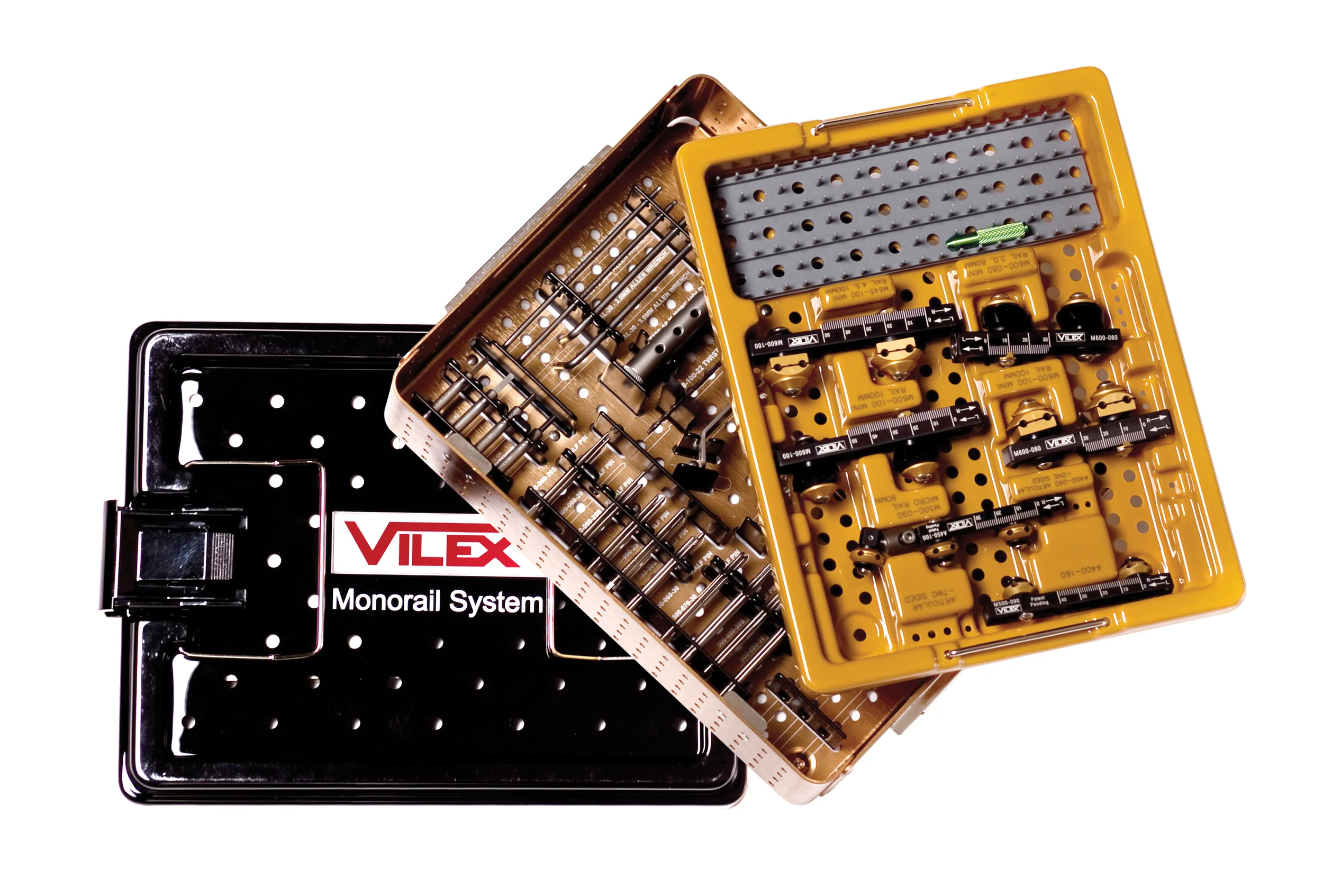

Mono Rail

  • Various rail lengths of 100mm, 150mm, and 300mm to address clinical situation

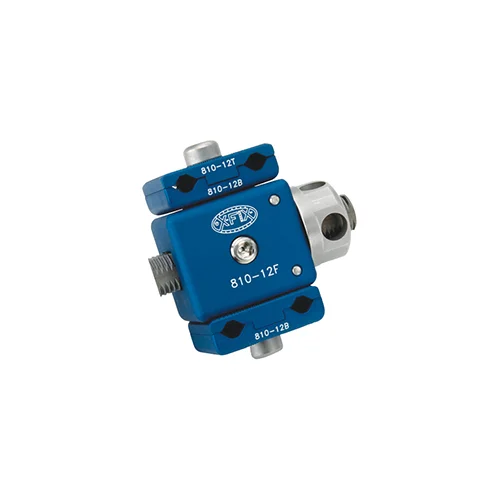

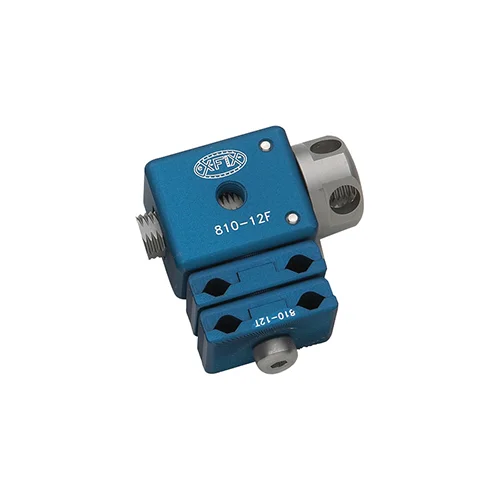

  • Poker chip style pin clamps controls rotation
  • Stacking clamps allow up to four pins per carriage
  • Clamps accept 4mm to 6mm half pins
  • Possible indications: Isolated Subtalar Fusions, Medial Column Fusions, Triple Arthrodesis.
